Introducing Creality Falcon T1 Laser Engraver Canada

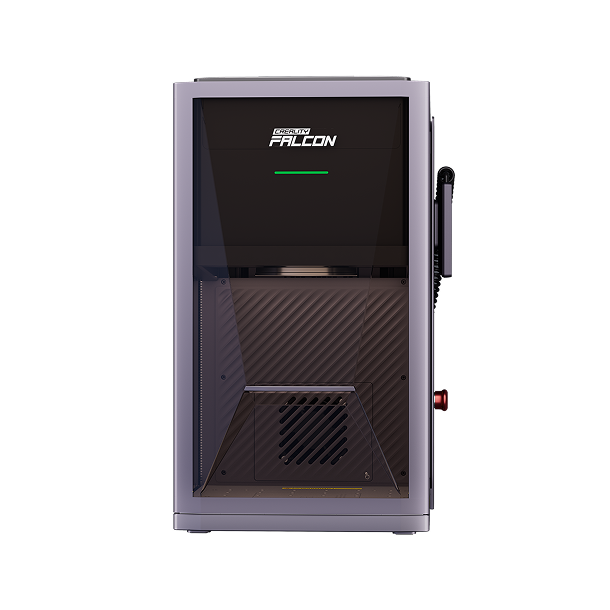

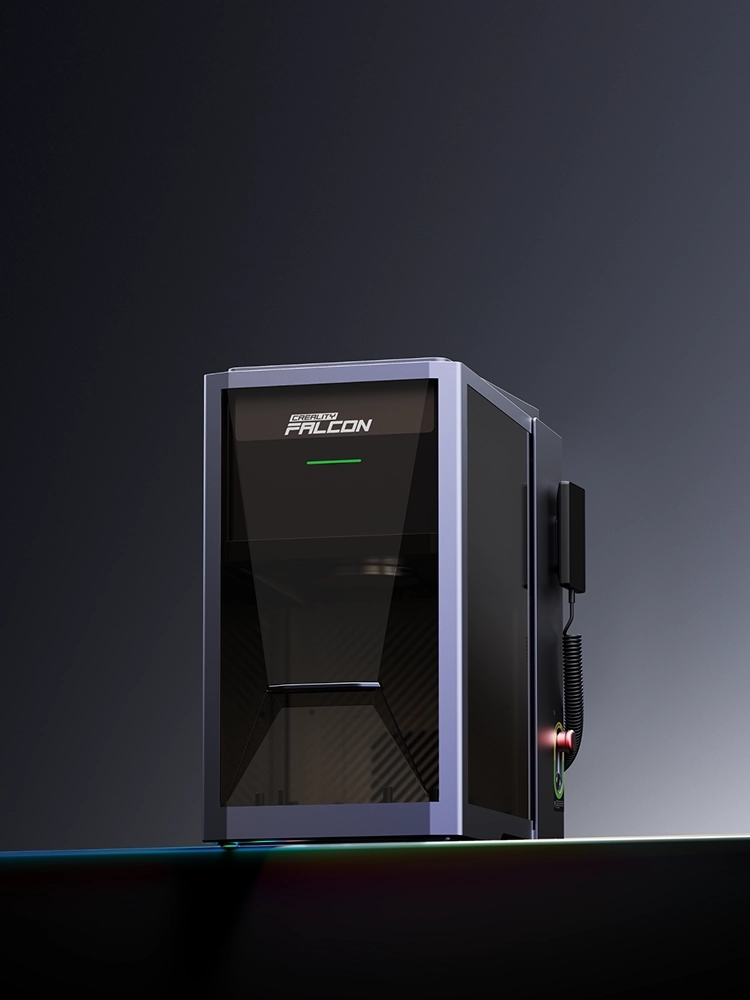

Creality Falcon T1

Creality Falcon T1

The World's First 5-in-1 Laser Workstation

The World's First 5-in-1 Laser Workstation
5 Tools. 1 Machine. Swap in 15 Seconds.
Less Space. Lower Cost. More Output.

Get the highlights.

5 in 1 Laser Module Design

5-in-1 Modular Design

20W Diode, 20W Fiber, 40W Diode, 5W UV, 60W MOPA

0.01mm Ultra-Precision 8x Faster Speed

0.001mm Ultra-Precision 8x Faster Speed¹

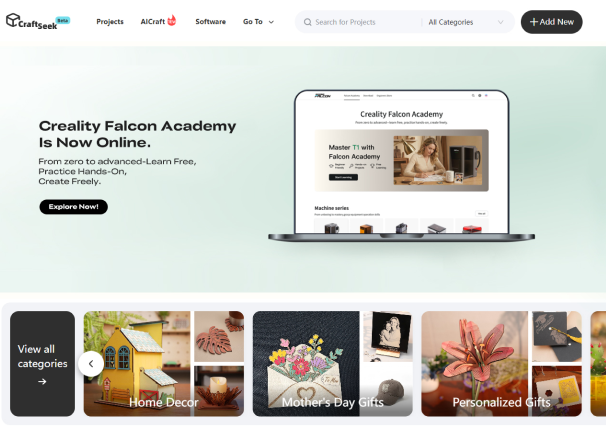

Smart Ecosystem, Redefining Experience

Smart Ecosystem, Redefining Experience

Class 1 Certification Top Laser Safety

Class 1 Certification Top Laser Safety

Automate Your Production

Automate Your Production

Auto Feed & Convey & Engrave

15-Second Tool Free Module Swap

15-Second Tool Free Module Swap

Full Material Processing Capability

Full Material Processing Capability

Software Compatibility

Software Compatibility

Falcon Design Space LightBurn GRBL

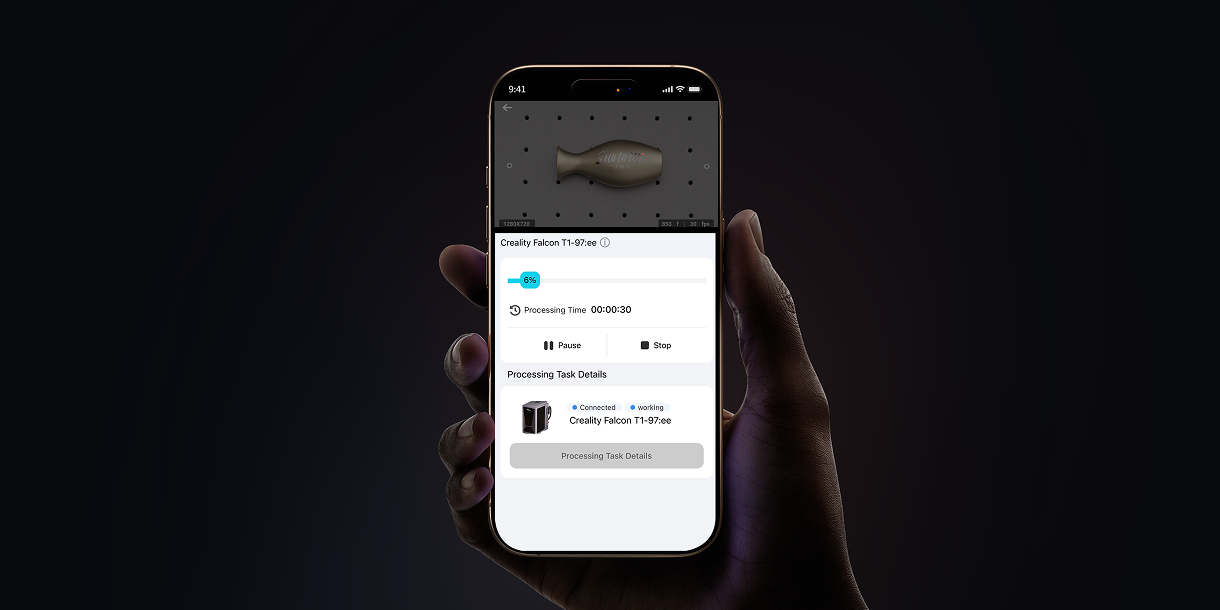

AI Powered Simplicity

AI Powered Simplicity

5-in-1 Modular Design

Lower Cost, Greater Potential.

One T1 replaces five machines

Cut equipment costs, save workspace

5 in 1 Module Design comparison
28,000 CAD+
15.710 CAD

15-Second Tool Free Module Swap

Jump instantly between fiber engraving, UV marking, and diode cutting - precision without pause.

Learn more about Multi-Wavelength Adaptive System

This enables all five laser sources to switch seamlessly, with no performance loss or accuracy drift.

Falcon T1 features the exclusive multi-wavelength adaptive system, which automatically identifies the installed laser module at every startup and intelligently adjusts all core parameters — including working distance, processing area, power output, pulse frequency, and scanning speed.

The system also performs real-time field-lens matching to ensure the optical path always remains in its optimal calibrated state.

T1 Does It All
Excellence in Every Detail

20W Diode

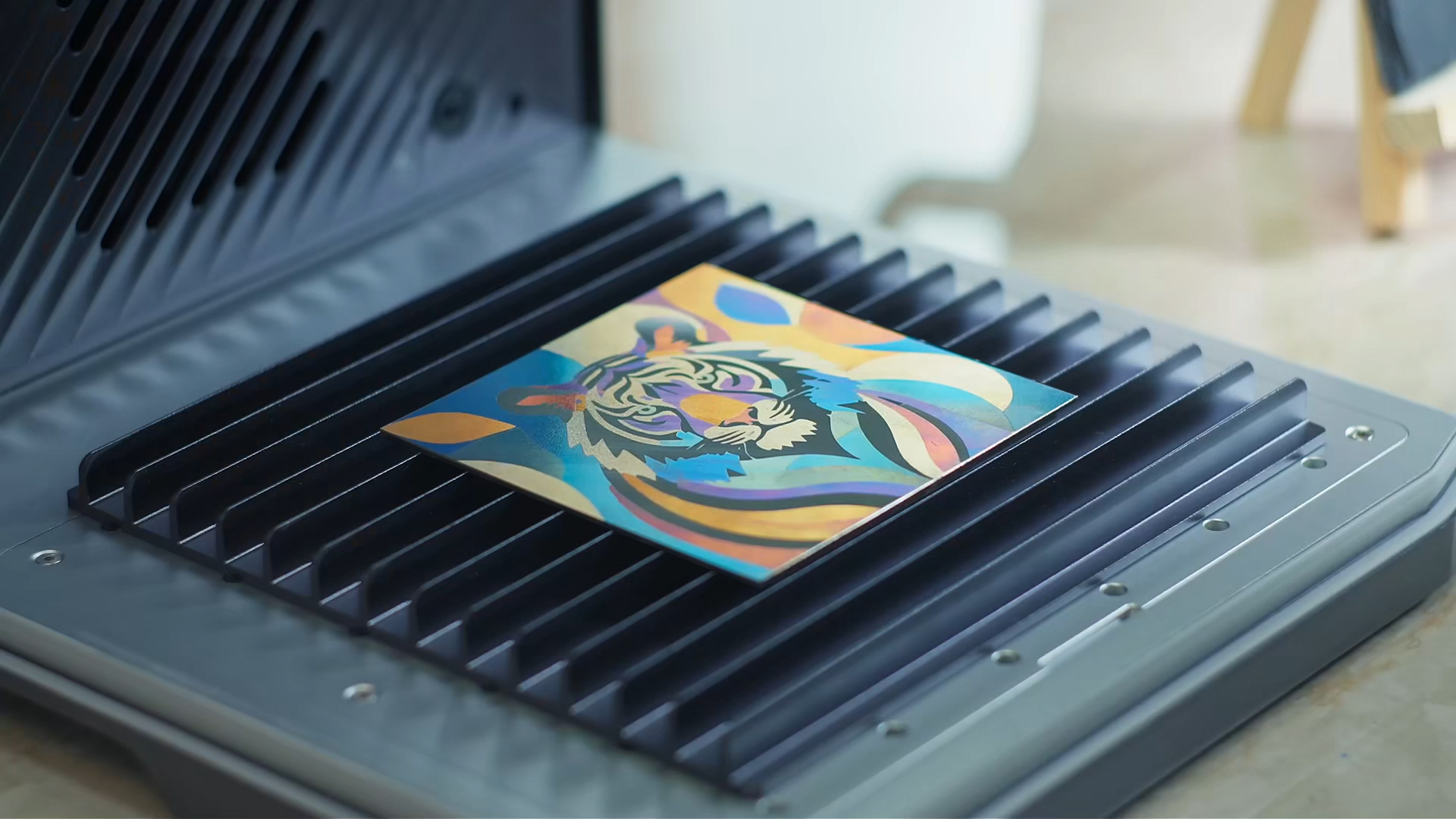

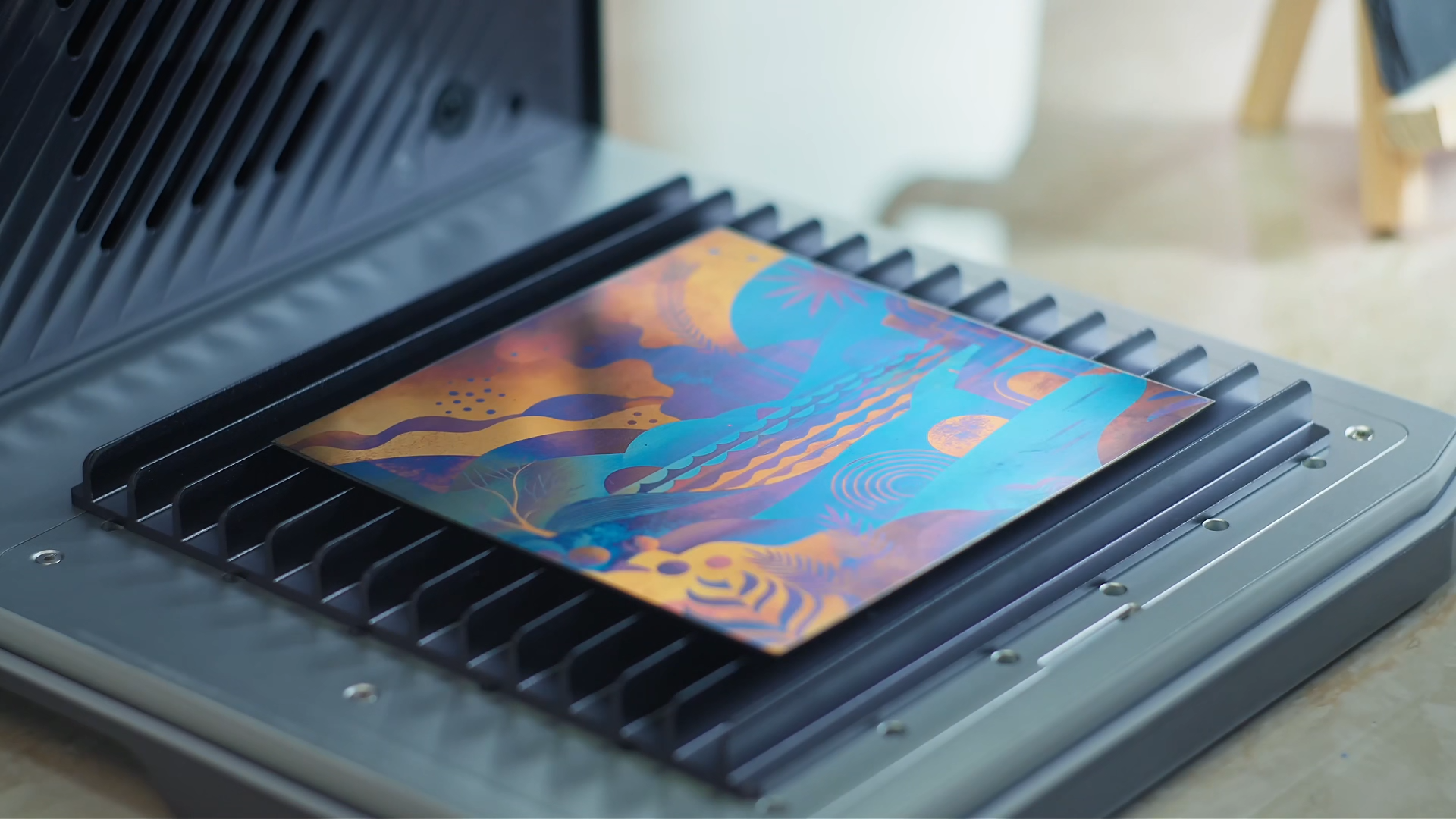

Fiber Laser 20W – Precision on Metal Perfect for Deep Engraving and Embossing Color on Metals

The 20W fiber laser is ideal for color engraving, delivering unmatched depth and clarity for professional marking and fine embossing.

Ideal for: stainless steel, aluminum, coated metals, and even hard woods.

Do More, With Less
Switch. Combine. Create.

Why is Falcon T1 the Best Choice?

"I work with many different materials."

That's exactly why Falcon T1 exists. With five laser modules — Fiber, MOPA, Diode 20W & 40W, and UV — you can engrave and cut across wood, metal, glass, leather, and more, all in one system.

Elowen Elowen

"I want professional results without investing in multiple machines."

Falcon T1 gives you commercial-grade quality and versatility in one compact form. It's like having five professional tools combined — perfectly aligned, instantly switchable, and always precise.

Avery Avery

"I need power for both art and production."

With industrial-grade galvo mirrors and high-speed scanning up to 10,000 mm/s, Falcon T1 delivers factory-level output for studios, startups, and creative businesses.

Jordan Jordan

"Switching between tools slows me down."

T1's tool-free 15-second module swap keeps your flow uninterrupted. Switch lasers, combine effects, and finish projects faster — with precision that never drops.

Morgan Morgan

All Materials, One Machine

Engrave, cut, and mark across all materials as you need - from wood and leather to glass, metal, and ceramics. With 5 specialized laser modules, Falcon T1 masters every texture,every surface, and every creative idea. Flat, curved, soft, or solid, surface and inside- nothing is out of reach.

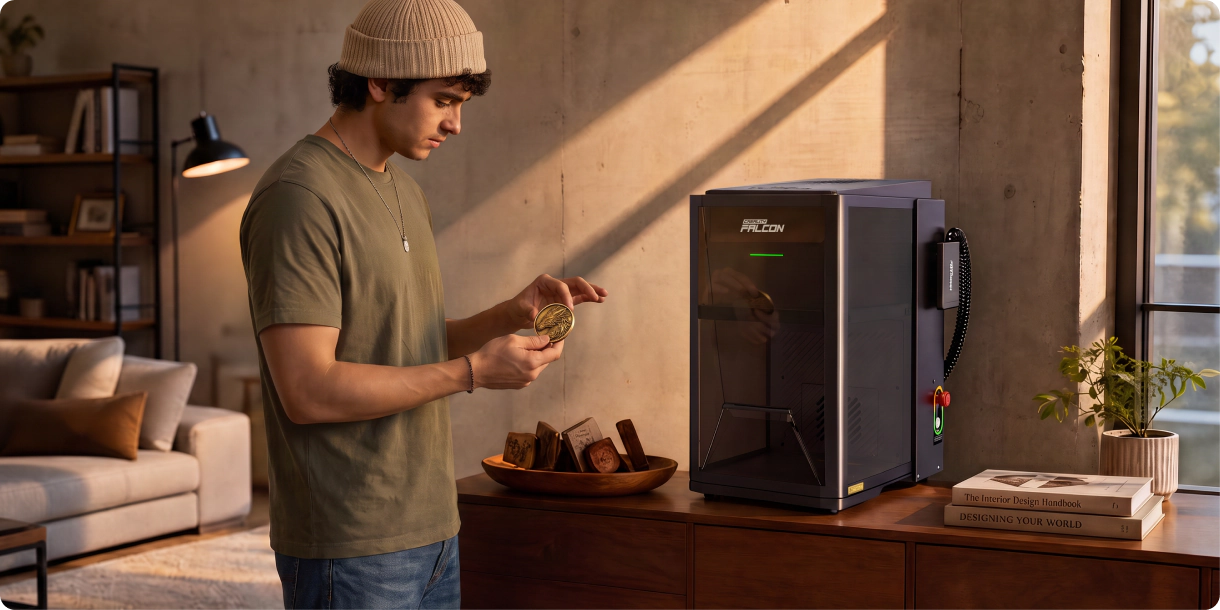

From personalized gifts and business branding to home decor and industrial prototyping, Falcon T1 empowers creators to make more — anytime, anywhere. Whether it's a festive project, a custom product, or a small-batch order, T1 turns every idea into precision-crafted reality.

Falcon T1 is more than a tool — it's a partner trusted by thousands of makers, studios, and entrepreneurs. From jewelry and signage to glass art and metal engravings, real users are turning everyday ideas into extraordinary creations. Join the movement and see what's possible when five lasers work as one.

All-in-One Laser Solution
One Powerful Machine for Unlimited Creative

From soft to hard, thin to thick, and flat to 3D, Falcon T1 brings all your crafting, marking, and industrial projects to life.

All-in-One Laser Solution
Speed background
Stable Power System

Stable Power, Lasting Precision

Engineered with an advanced cooling and power control system, T1 delivers unwavering laser stability — even at 40 °C. No drift, no deviation — just flawless precision, every time.

Finer Details, Greater Beauty

Falcon T1's UV cold laser delivers accuracy as fine as 0.001mm — nearly 50x greater resolution than standard diode systems. That means even the most delicate details, from inner-crystal engravings to intricate surface textures, are reproduced with flawless accuracy.¹

Tiger engraving detail

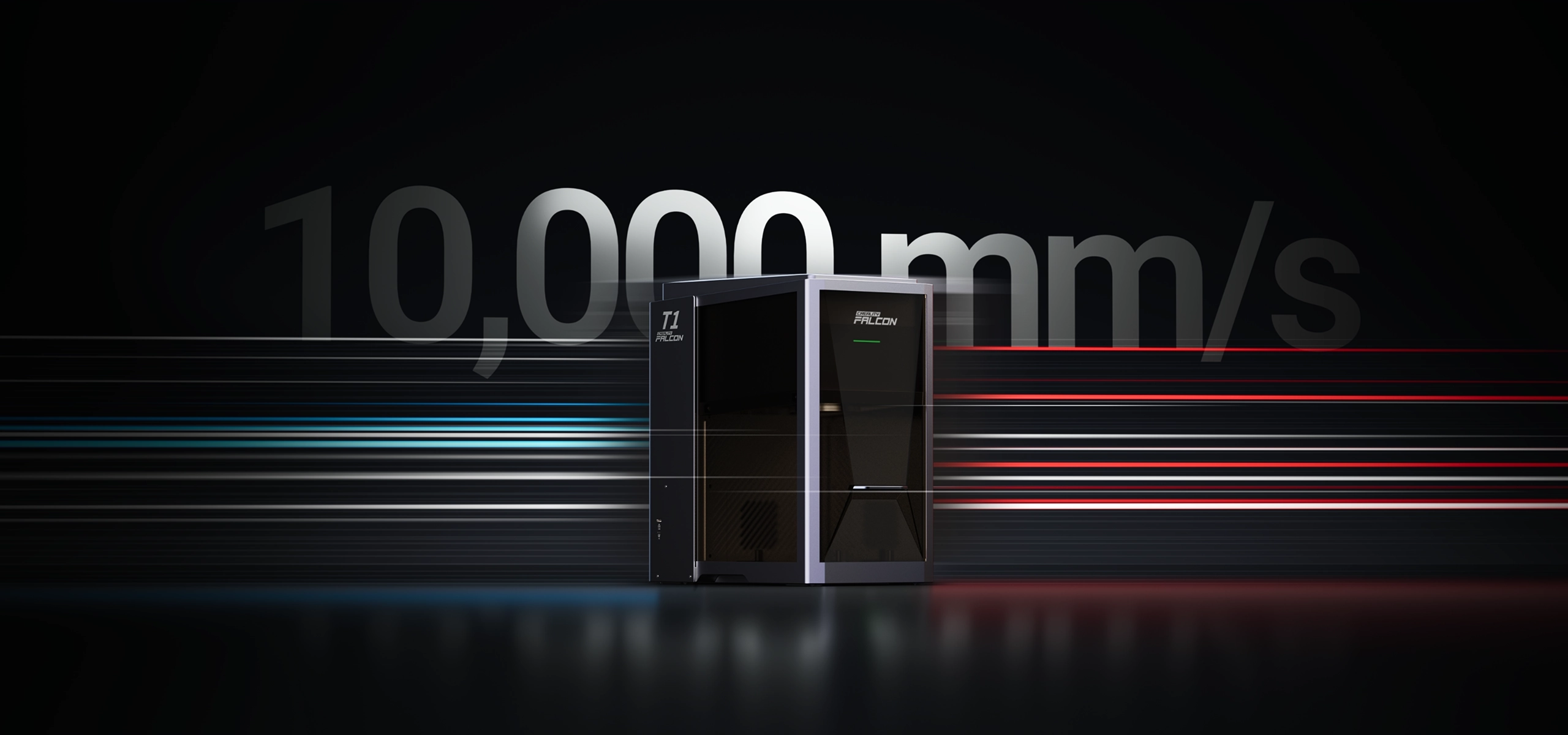

Hyper-speed. Hyper-efficient.

With a high-speed galvanometer, engraving line speeds of up to 10,000 mm/s are achieved without compromising accuracy. Ultra-fast galvo tech, extreme productivity. The T1 delivers up to 8X higher speed than competing galvo lasers.

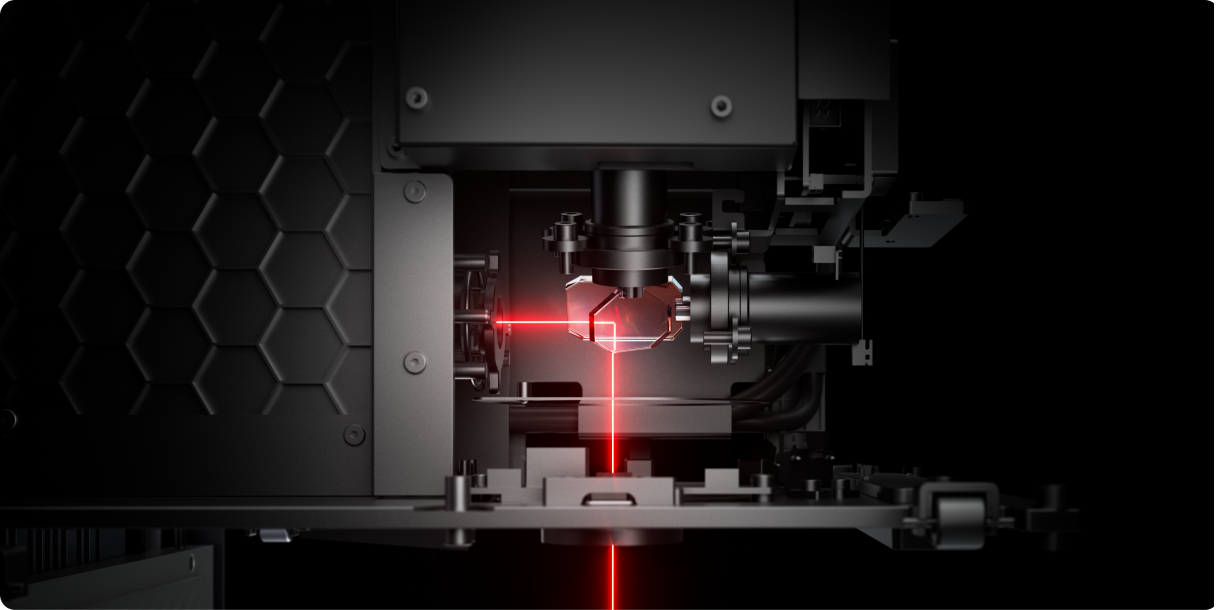

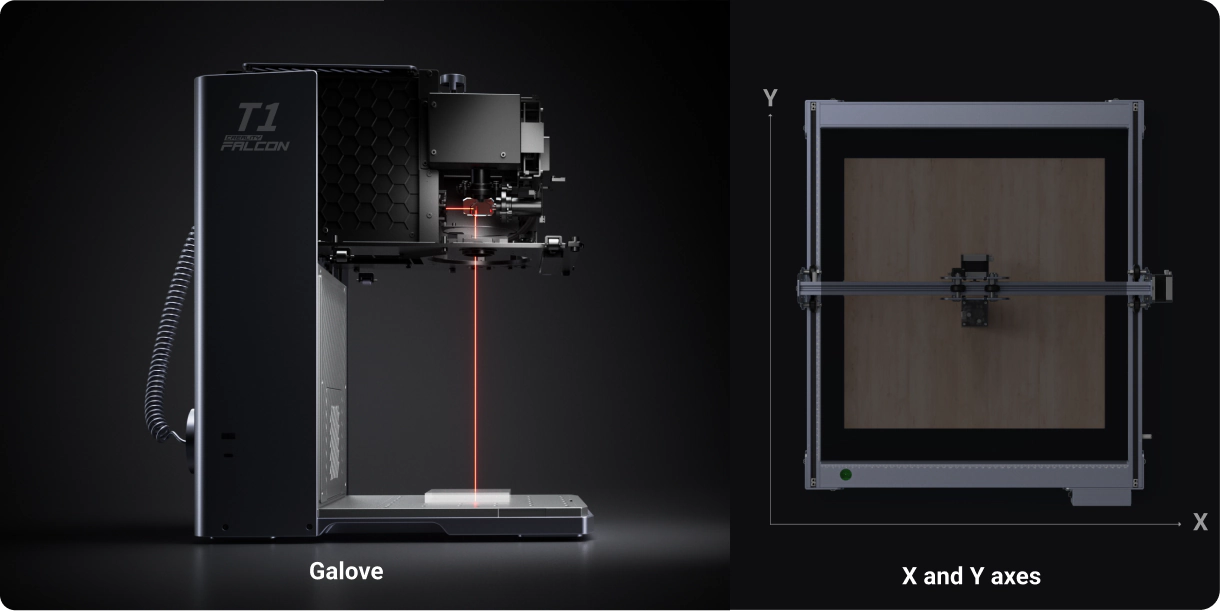

Galvo Technology

* Unlike traditional XYZ-axis motion systems, galvo technology deflects the laser beam via ultra-fast mirrors, enabling extreme productivity on a fixed plane.

For Every Thickness, One Perfect Laser.

Can cut 8 mm basswood and 6mm non-transparent acrylic

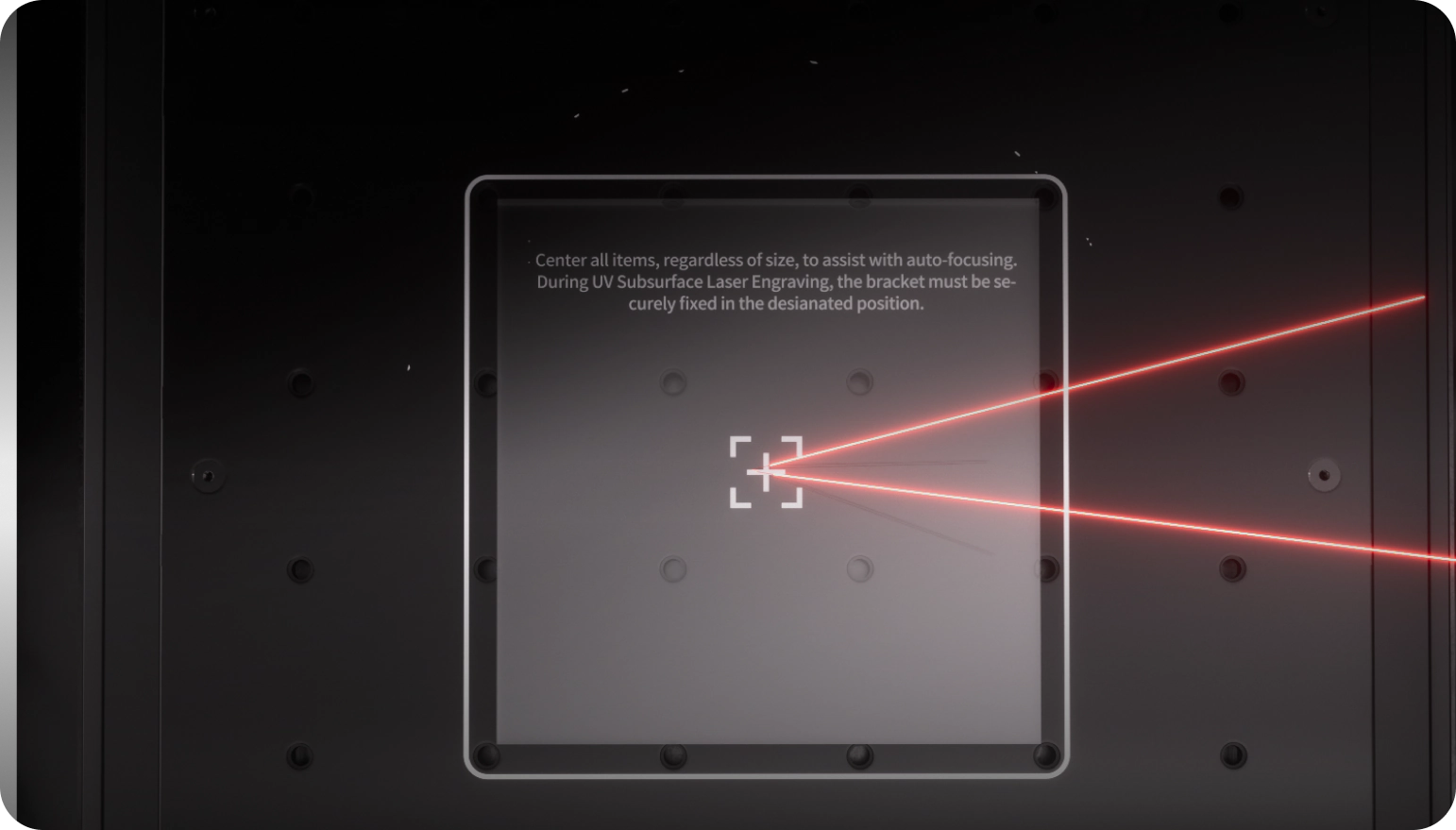

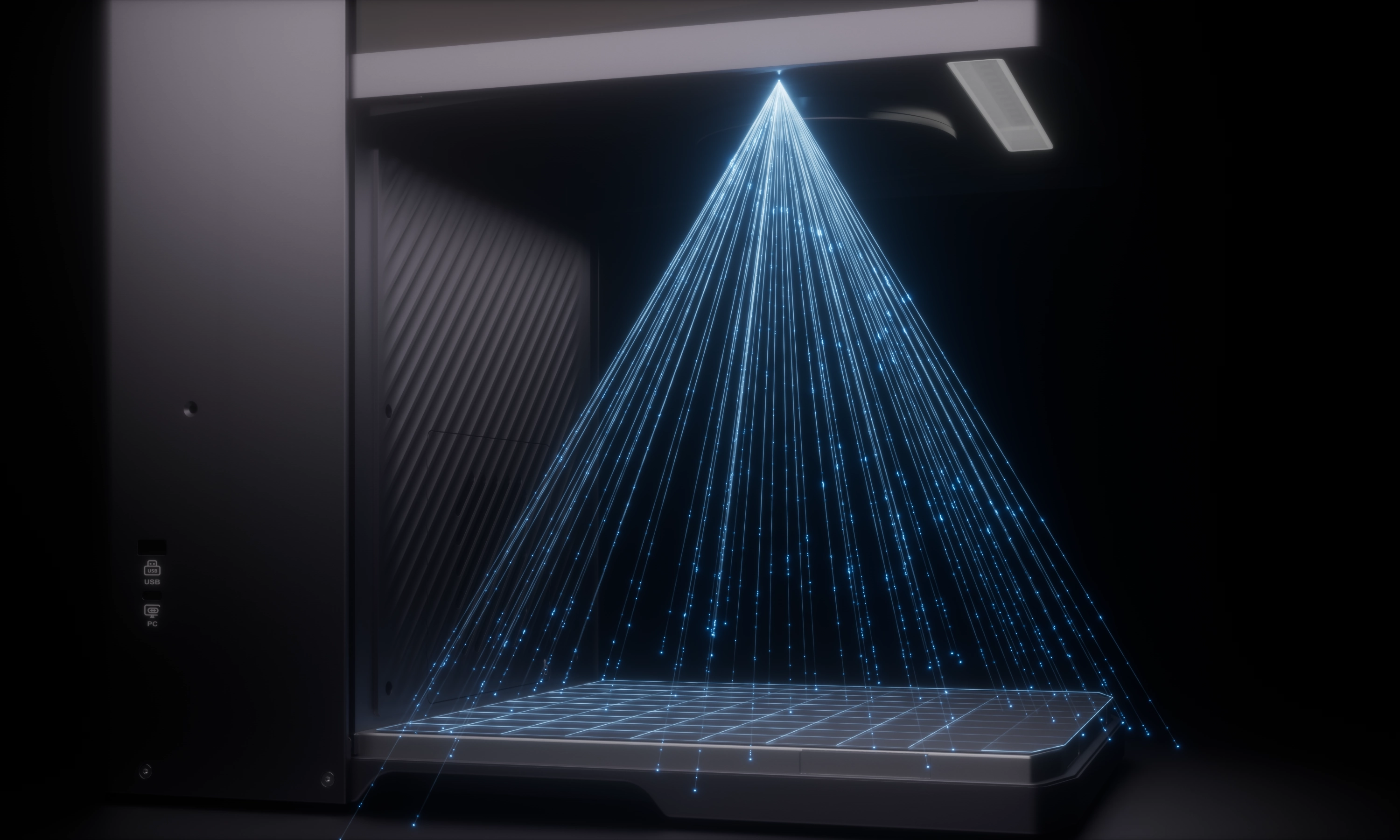

Smart Camera
Instant Preview, Flawless Positioning

The HD camera works with a quick-calibration algorithm. After replacing a module, the system recalibrates automatically. No complex setup required. Factory-level precision, right in your workshop.

Class 1 Certification
Top Laser Safety

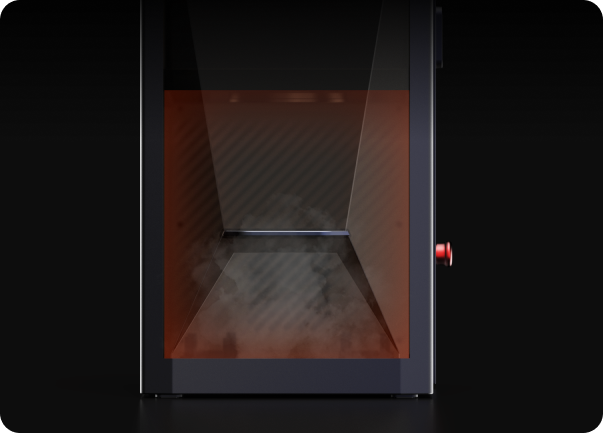

Certified Class 1 Safety

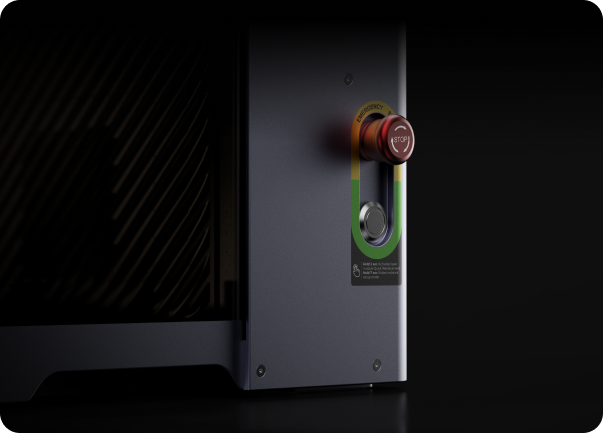

From the lid-open and waste tray safety stops, to the emergency stop button and laser key lock, T1 ensures maximum protection while delivering professional power.

Smart Tech That Elevates Everything

AI filters and depth mapping convert images into detailed 3D reliefs—no more source limitations.

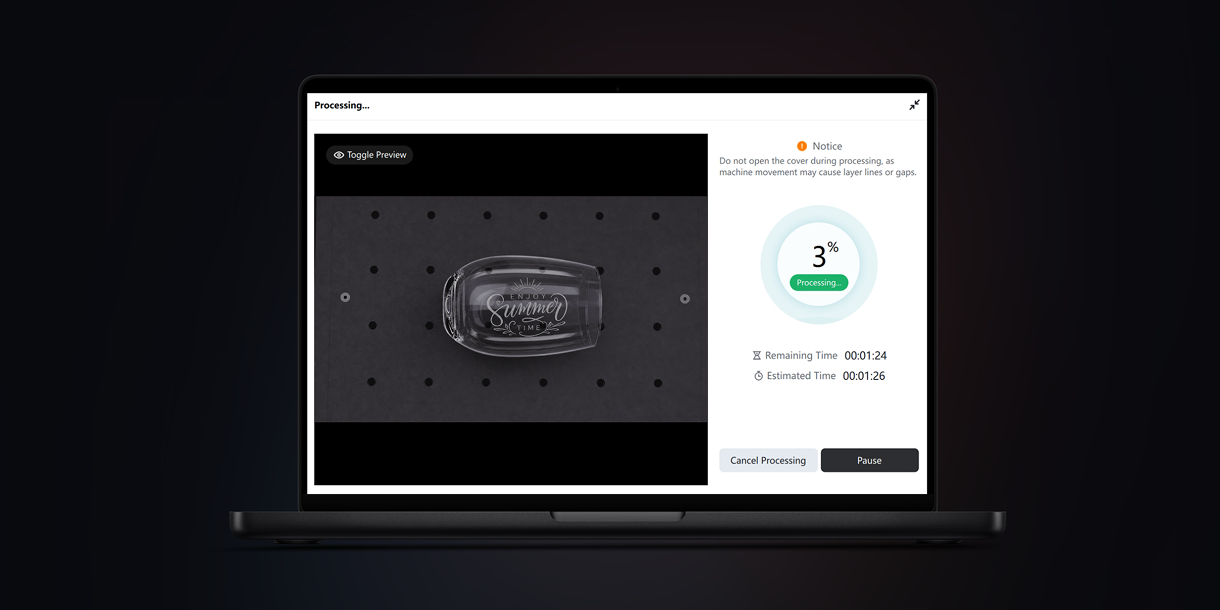

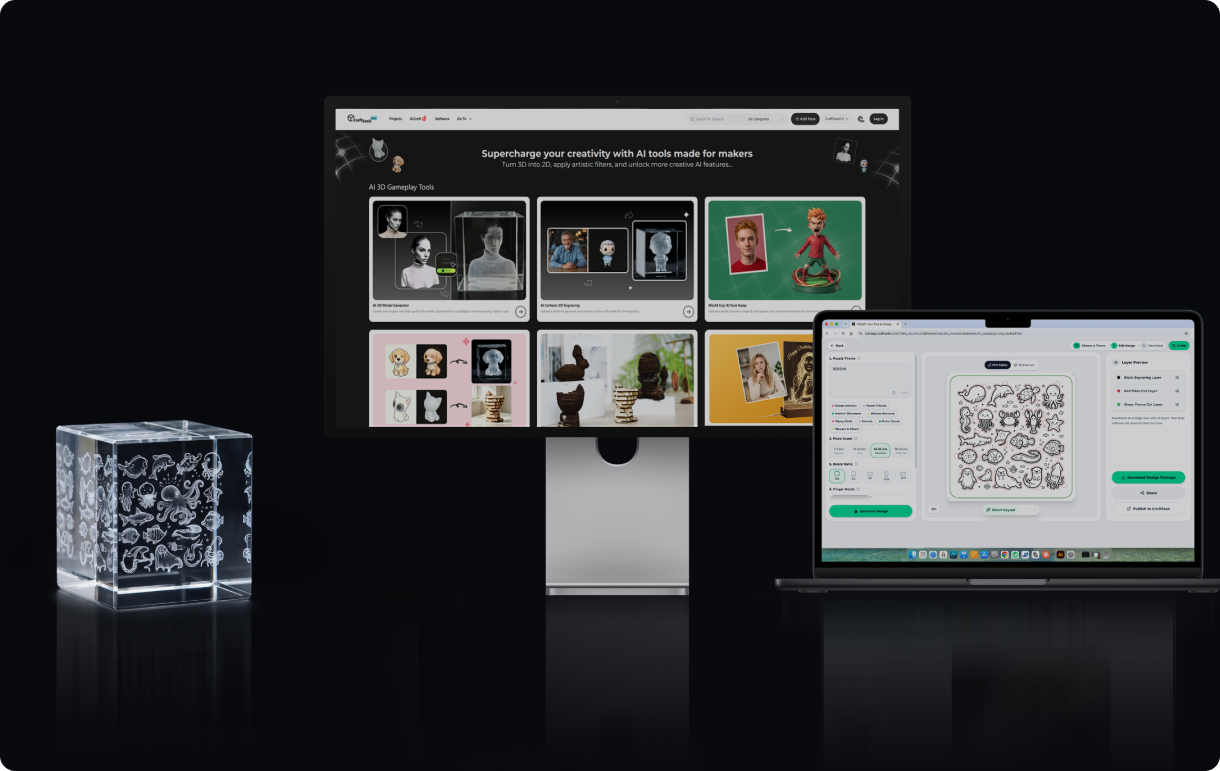

Leading Software Makes Creation a Breeze

Falcon Design Space – Powerful, Intuitive, and Effortless The most powerful yet simplest laser software, designed to make your workflow faster and more efficient.

Software on devices

Diverse Accessories & Materials, A Complete Ecosystem

Batch Process for Industrial-Grade Output Rising 18x
Do More. Earn More.

From loading and conveying to layout and engraving, Falcon T1 delivers fully hands-free automation. With Smart Fill streamlining your workflow, you can effortlessly handle bulk materials, accelerate large orders, and finish more in less time.

Adapt to Any Job. Master Every Objects.

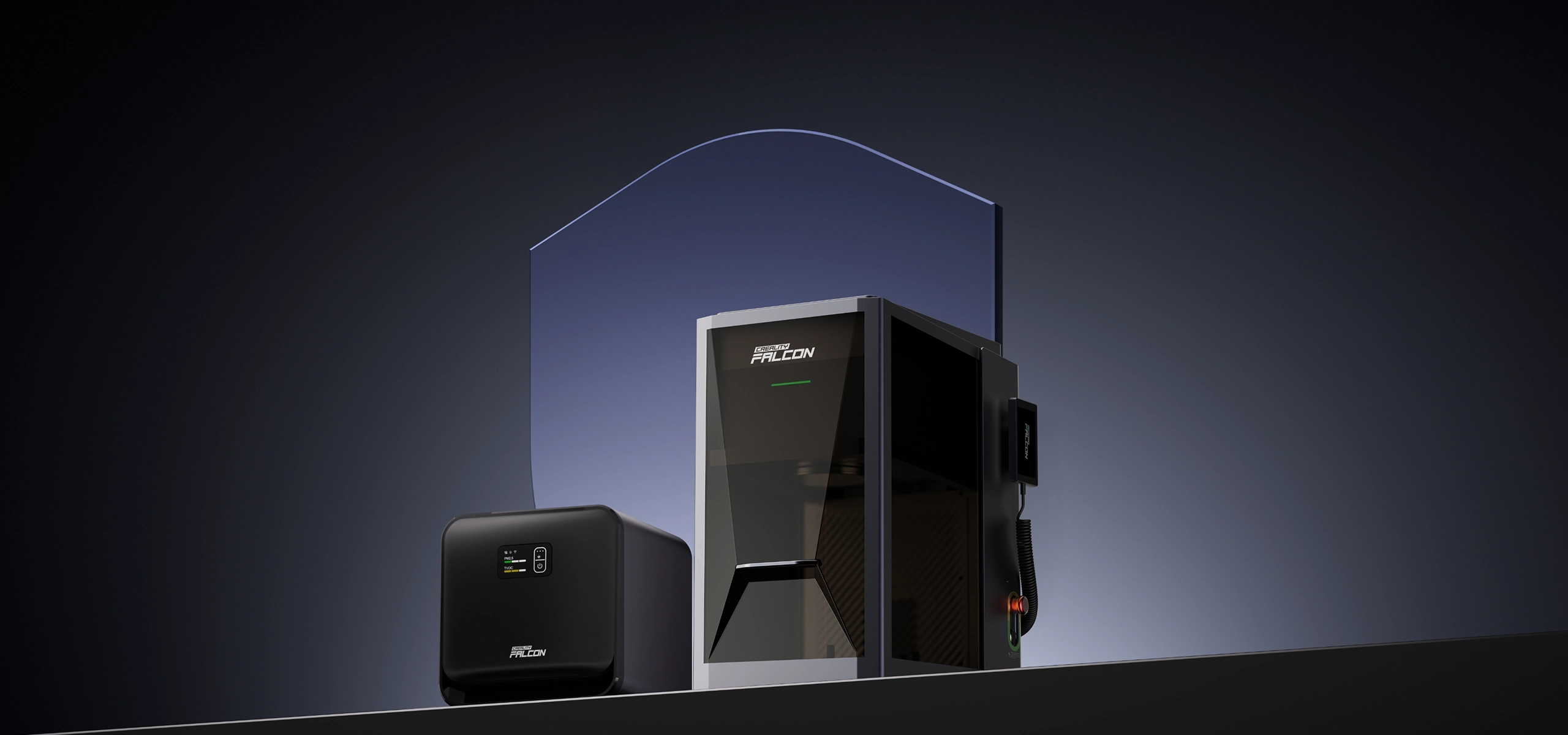

Creality Purifier AP1 Mini

Perfect for homes, studios, and shops, allowing you to engrave anytime with clean, safe air.

Purifier

Rotary Attachment Kit

Featuring an innovative 4-in-1 rotary axis, T1 supports engraving on most common cylindrical and spherical objects - including tumblers, mugs, ornament balls, rings, and more with ease⁴.

Rotary

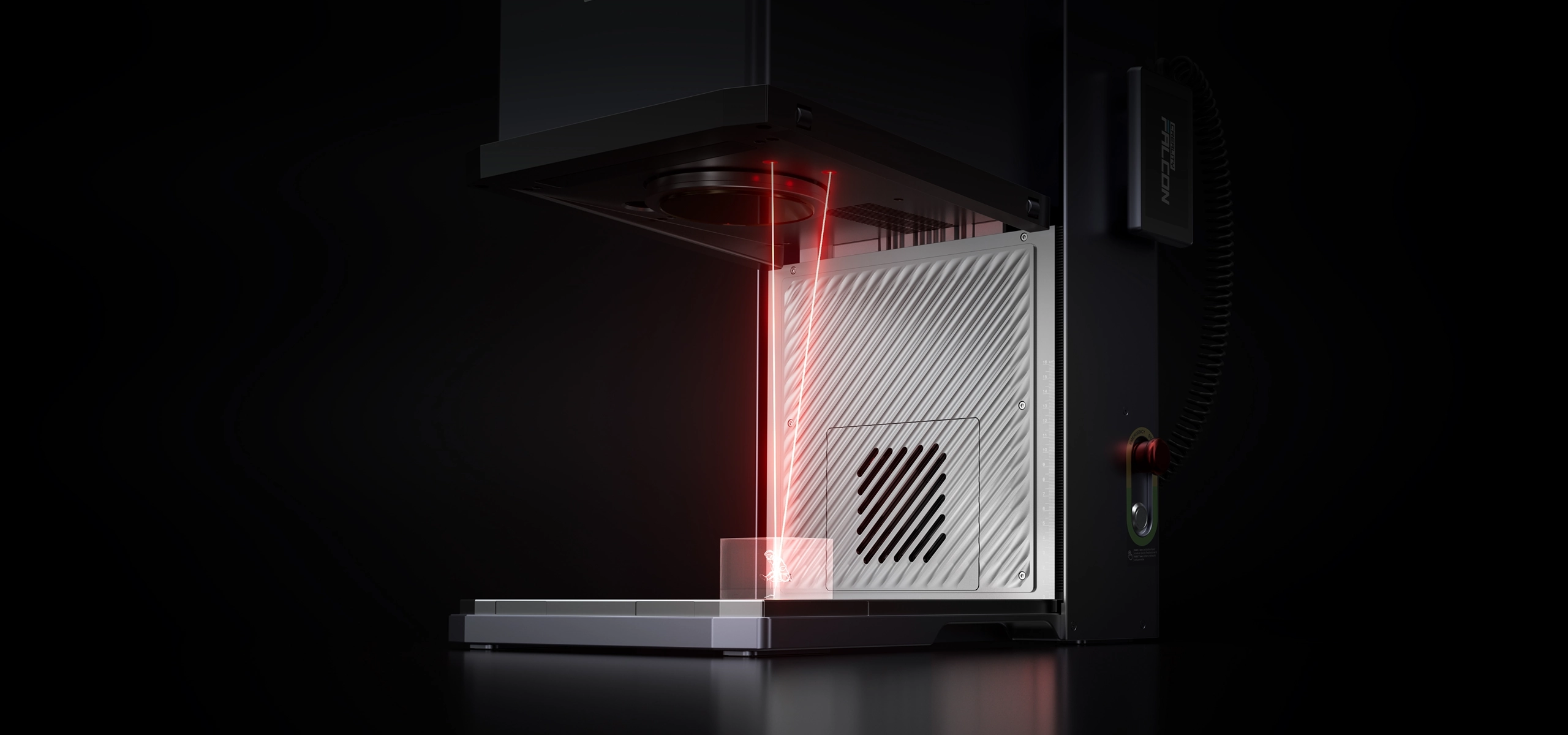

UV Inner-Engraving Riser

Provides extended focal distance for UV engraving, compatible with taller and thicker glass, crystal, and transparent materials.

UV Riser

Falcon T1 Knife Blade Bed

Knife strip design improves airflow, for cleaner, smoother cutting edges.

Blade Bed

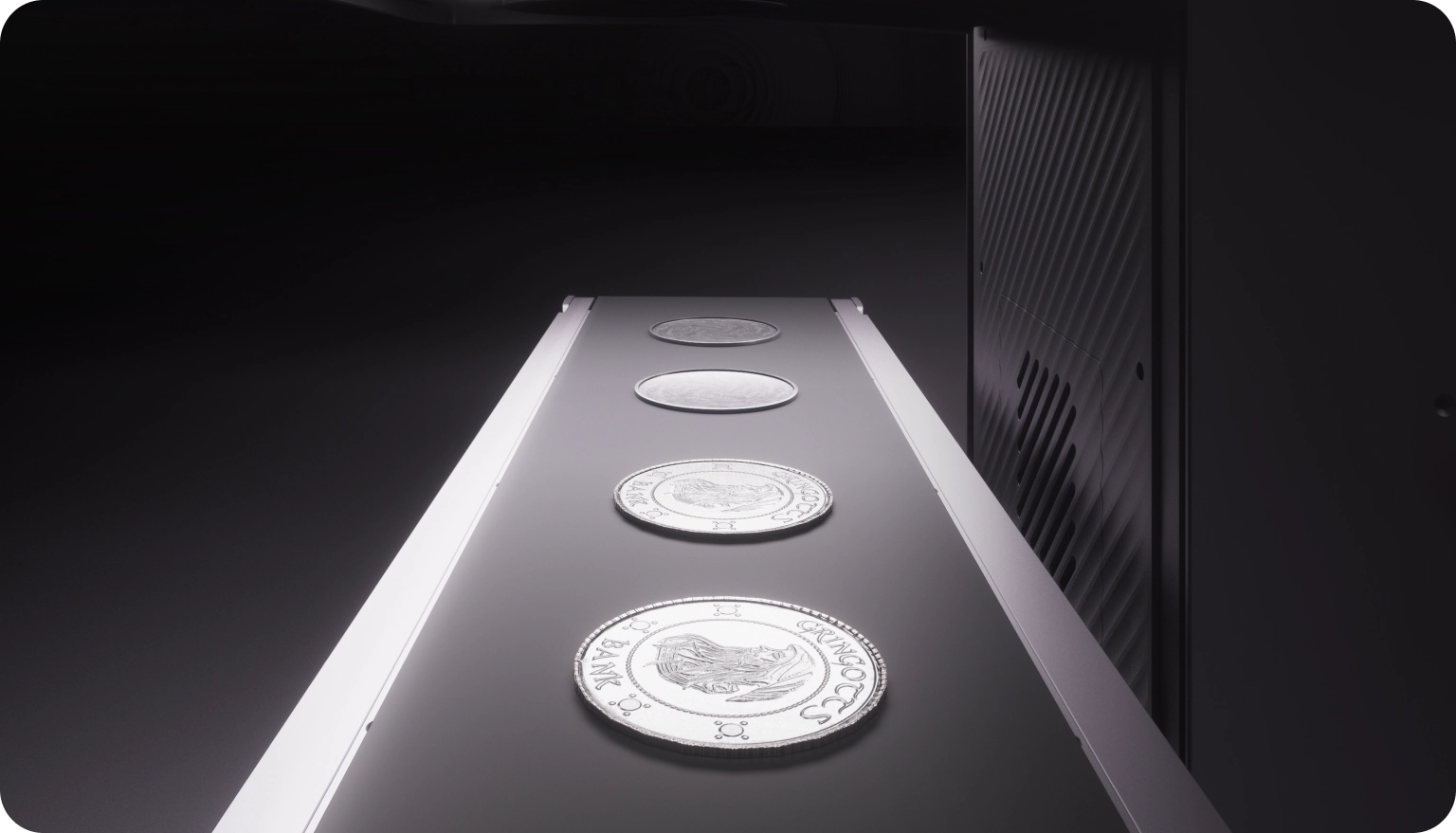

Falcon Conveyor TC1

Precision Batch Processing with Smart Fill Tech Larger working area ensures stable, continuous, and repeatable automated production⁴.

Falcon Conveyor TC1

Flexible Fixture

Adapts to irregular shapes and secures objects at any angle.

Flexible Fixture

Falcon T1 Module

Five optional modules: 20W diode module, 40W diode module, 20W fiber module, 60W MOPA module, and 5W UV module.

Falcon T1 Module

Every Detail Matters for a Better Experience

Ready Out of the Box

The machine comes pre-assembled and factory-calibrated. You can complete setup and start engraving in as little as 10 minutes after unboxing.

Unboxing

Smart Touchscreen, Simpler Workflow

The 4.3-inch HD touchscreen lets you operate the machine without a computer. Supports USB drive import, cloud file access, and app control. The screen module is easy to detach for cleaning—making every operation more flexible and efficient.

Touchscreen

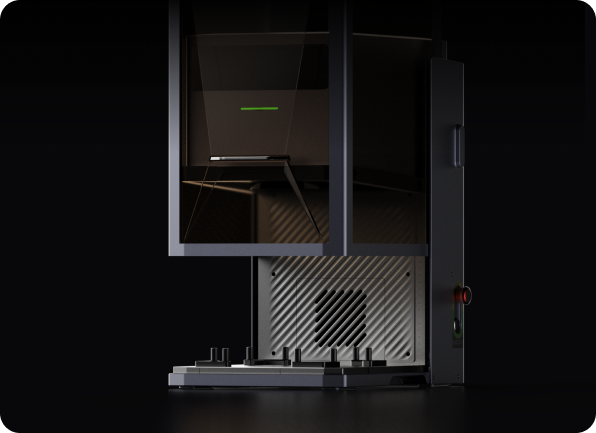

Removable Fan for Easy Cleaning

The exhaust fan adopts a modular, detachable design, allowing the entire unit to be removed and cleaned. This makes maintenance easier, reduces dust buildup, and extends the machine's service life.

Fan

Removable Dust Guard for Easy Maintenance

The dust guard features a modular, detachable design that allows quick removal and cleaning. It prevents buildup, extends component life, and keeps your machine running smoothly with minimal effort.

Dust Guard

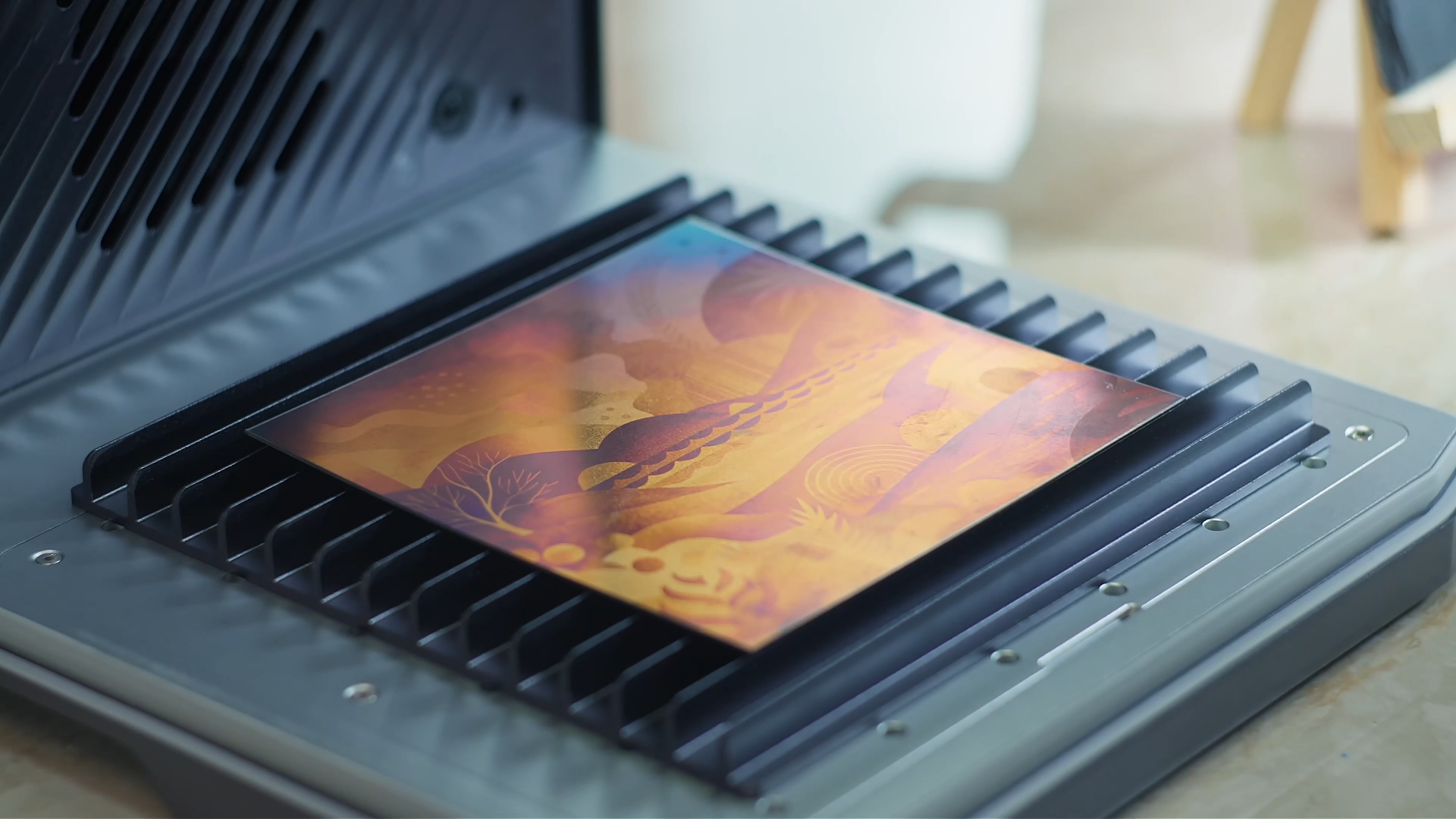

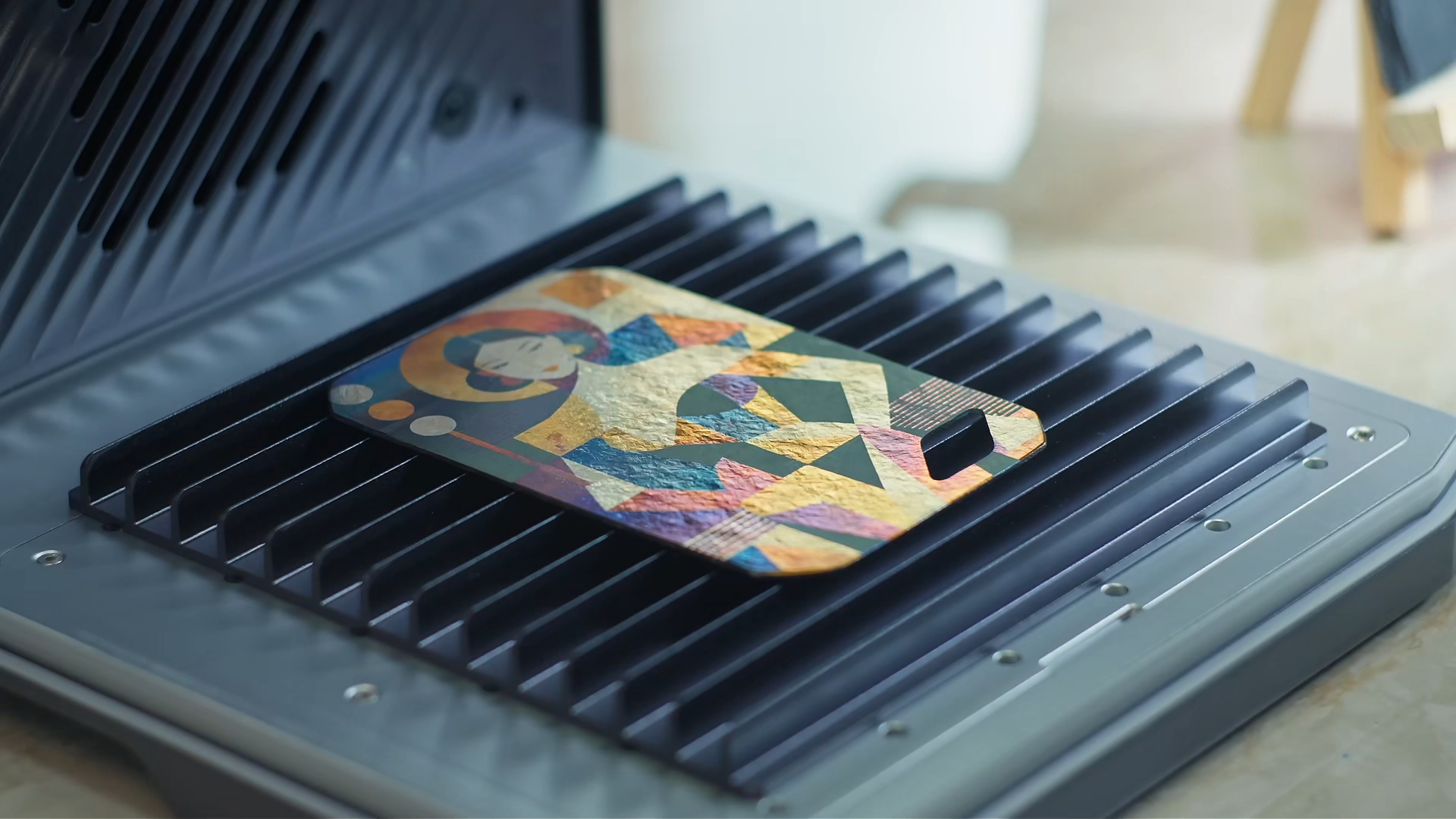

Detachable Work Bed for Greater Flexibility

The entire work bed can be removed for easy cleaning, material replacement, or loading oversized and irregular-shaped objects—giving you more freedom in every project.

Work Bed

Integrated Carrying Handle Slots for Easy Moving

Built-in handle slots make lifting and moving the machine safer and easier—perfect for creators who switch between workspaces or studios.

Handle

In the Box

Laser Cutter and Engraver
Laser Module
Interactive Screen
Power Adapter
Power Cord
Exhaust Pipe
Type-A to Type-C Cable
Slotted Panel
L-shaped Locating Block
Hex Key
Hex Cross Wrench
Type-A to Type-C Adapter
Laser Calibration Card
Camera Calibration Card
Hose Clamp
Field Lens Calibration Card
Safety Key
Rubber Air Blower
Materials Pack
Dust-free Cloth
Lint-free Brush
Quick Start Guide
Safety Instructions
Internal Engraving F-Theta Lens³
Internal Engraved Stand³

Specifications

Category Blue Laser (Diode) 20W Blue Laser (Diode) 40W Infrared Laser (Fiber) 20W MOPA 60W UV Laser 5W
Wavelength 445nm±15nm 445nm±15nm 1064nm±5nm 1064nm±5nm 355nm±2nm
Compatible Materials Wood, acrylic, PU leather, MDF, dark glass, ceramics, coated metals, stainless steel, bamboo Wood, acrylic, PU leather, MDF, dark glass, ceramics, coated metals, stainless steel, bamboo Stainless steel, titanium alloy, gold, silver, brass, copper, iron, aluminum, plastic, shale Stainless steel, titanium alloy, gold, silver, brass, copper, iron, aluminum, plastic, shale Acrylic, plastic, glass, ceramics, crystal, PU leather, cardboard
Engraving Modes Flat engraving, relief, deep engraving, 3D curved engraving Flat engraving, relief, deep engraving, 3D internal engraving, internal engraving
Working Area 175*175mm 175*175mm
(Internal engraving area: 70 × 70 mm)
Spot Size 0.12mm×0.14mm 0.14mm×0.18mm 0.05mm 0.05mm 0.014mm
Processing Accuracy ≤ 0.01mm
Positioning Accuracy ±0.01mm
Max Working Speed 10000 mm/s
Product Dimensions 464×312×509mm
Software Support Falcon Design Space、（LightBurn）
Operating System Windows/MacOS
Supported File Formats jpeg,jpg, png, bmp, svg, dxf,pdf,etc.
3D: glb obj fbx stl ply
Safety Class class 1
Input Voltage 100-240V~ 50-60Hz

Important Note:

* All specifications and performance data shown for the Creality Falcon T1 are based on internal testing conducted under controlled conditions. Actual results may vary depending on materials, usage, environmental factors, and individual operating conditions.

* Project images and videos are provided for reference and inspiration only. Final results may differ based on user technique, material selection, and application scenarios.

* Comparisons are based on internal testing or publicly available information under similar conditions. Variations in test methods, configurations, and environments may lead to different results.

1. 0.001mm refers to the galvanometer displacement accuracy under the F130 field lens.

2. The "up to 8× faster" claim refers specifically to bitmap engraving, enabled by a proprietary bidirectional scanning algorithm. This performance gain is independent of material type and laser source, and applies to bitmap-based engraving workflows. Actual results may vary based on image complexity and operating conditions.

3. Compared with red and blue laser engraving machines, this UV laser engraving machine is standard equipped with an internal engraving F-theta lens and an internal engraving bracket in the packaging list.

4. In specific open-cover scenarios (e.g., conveyor belt mode and rotation mode), this laser product is not Class 1 compliant. During operation, be sure to increase protection (e.g., wear personal protective equipment).
